上海富泰閥門有限公司是國內生產安全閥的主導廠，廠內建有遠東一流的安全閥測試中心，國產第一臺安全閥就是我廠誕生的。二十多年來，富泰牌安全閥的品種已發展到百余個系列，千余個規格，產品廣泛應用于鍋爐、石化、電站以及國防工業。并為國內第一座核電站秦山核電站研制成功了第一批核級安全閥。 富泰牌安全閥主要產品系列分別榮獲機械部信得過產品，上海市優質產品稱號，國家銀質獎。 富泰牌安全閥是受壓設備、容器或管路上的最佳超壓保護裝置。當設備壓力升高達到預定值時，安全閥自動開啟，繼而全量排放，防止設備壓力繼續升高；當壓力降低到規定值時，安全閥及時自動關閉。富泰牌安全閥是選用者為保護工程設備安全運行的最理想的，最科學的明智選擇。

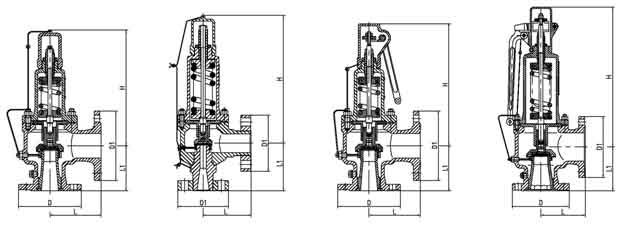

主要連接尺寸：
|
型 號 |
公稱 |
主要結構尺寸 |
閥體 |
簡要性能 |
備注 |
||||||
|
通徑 |
壓力 |
D |
D1 |
L |
L1 |
H |
適用溫度 |
適用介質 |
|||
|
A42Y-16C |
32 |
1.6 |
135 |
146 |
115 |
110 |
285 |
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
40 |
" |
150 |
160 |
120 |
110 |
278 |
" |
" |
" |
|
|
" |
50 |
" |
165 |
180 |
135 |
120 |
332 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
200 |
215 |
170 |
135 |
478 |
" |
" |
" |
|
|
" |
100 |
" |
220 |
245 |
205 |
160 |
590 |
" |
" |
" |
|
|
" |
150 |
" |
280 |
310 |
255 |
230 |
650 |
" |
" |
" |
|
|
" |
200 |
" |
|
|
|
|
|
" |
" |
" |
|
|
A42Y-40 |
32 |
4.0 |
140 |
150 |
115 |
100 |
285 |
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
40 |
" |
145 |
160 |
130 |
120 |
278 |
" |
" |
" |
|
|
" |
50 |
" |
160 |
180 |
145 |
130 |
332 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
195 |
215 |
170 |
150 |
478 |
" |
" |
" |
|
|
" |
100 |
" |
230 |
245 |
205 |
185 |
590 |
" |
" |
" |
|
|
" |
150 |
" |
300 |
310 |
255 |
230 |
650 |
" |
" |
" |
|
|
" |
200 |
" |
|
|
|
|
|
" |
" |
" |
|
|
A42Y-64 |
32 |
6.4 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
40 |
" |
165 |
160 |
130 |
120 |
308 |
" |
" |
" |
|
|
" |
50 |
" |
175 |
180 |
155 |
130 |
464 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
210 |
230 |
175 |
160 |
582 |
" |
" |
" |
|
|
" |
100 |
" |
250 |
270 |
195 |
195 |
600 |
" |
" |
" |
|
|
A42Y-100 |
32 |
10.0 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
40 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
50 |
" |
195 |
180 |
155 |
130 |
500 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
230 |
230 |
175 |
160 |
760 |
" |
" |
" |
|
|
" |
100 |
" |
265 |
270 |
220 |
210 |
750 |
" |
" |
" |
|
|
SA42Y-160 |
32 |
16.0 |
115 |
165 |
150 |
150 |
397 |
鑄鋼 |
≤200 |
氮、氨氣、油品、空氣 |
|
|
" |
40 |
" |
165 |
200 |
165 |
165 |
438 |
" |
" |
" |
|
|
SA42Y-320 |
32 |
3.2 |
135 |
165 |
150 |
150 |
395 |
鑄鋼 |
≤200 |
氮、氨氣、油品、空氣 |
|
|
" |
40 |
" |
|
|
|
|
|
" |
" |
" |
|
|
SA42Y-400 |
32 |
40.0 |
135 |
165 |
150 |
150 |
397 |
鑄鋼 |
≤200 |
氮、氨氣、油品、空氣 |
|
|
" |
40 |
" |
|
|
|
|
|
" |
" |
" |
|
|
A44Y-16C |
32 |
1.6 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
A44Y-16C |
80 |
1.6 |
200 |
220 |
170 |
135 |
538 |
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
100 |
" |
215 |
245 |
205 |
185 |
655 |
" |
" |
" |
|
|
" |
150 |
" |
280 |
310 |
255 |
230 |
740 |
" |
" |
" |
|
|
" |
200 |
" |
|
|
|
|
|
" |
" |
" |
|
|
A44Y-40 |
32 |
4.0 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
40 |
" |
145 |
165 |
130 |
120 |
314 |
" |
" |
" |
|
|
" |
50 |
" |
160 |
180 |
145 |
130 |
376 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
195 |
215 |
170 |
150 |
538 |
" |
" |
" |
|
|
" |
100 |
" |
230 |
245 |
205 |
185 |
655 |
" |
" |
" |
|
|
" |
150 |
" |
300 |
310 |
255 |
230 |
740 |
" |
" |
" |
|
|
" |
200 |
" |
|
|
|
|
|
" |
" |
" |
|
|
A44Y-64 |
32 |
6.4 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
40 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
50 |
" |
175 |
180 |
155 |
130 |
520 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
210 |
230 |
175 |
160 |
810 |
" |
" |
" |
|
|
" |
100 |
" |
250 |
270 |
195 |
195 |
890 |
" |
" |
" |
|
|
A44Y-100 |
32 |
10.0 |
|
|
|
|
|
鑄鋼 |
≤300 |
油品、空氣等 |
|
|
" |
40 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
50 |
" |
195 |
180 |
155 |
130 |
520 |
" |
" |
" |
|
|
" |
65 |
" |
|
|
|
|
|
" |
" |
" |
|
|
" |
80 |
" |
230 |
230 |
175 |
160 |
810 |
" |
" |
" |
|
|
" |
100 |
" |
265 |
270 |
220 |
210 |
780 |
" |
" |
" |
|
